Checking And Aligning the Washer Nozzles
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

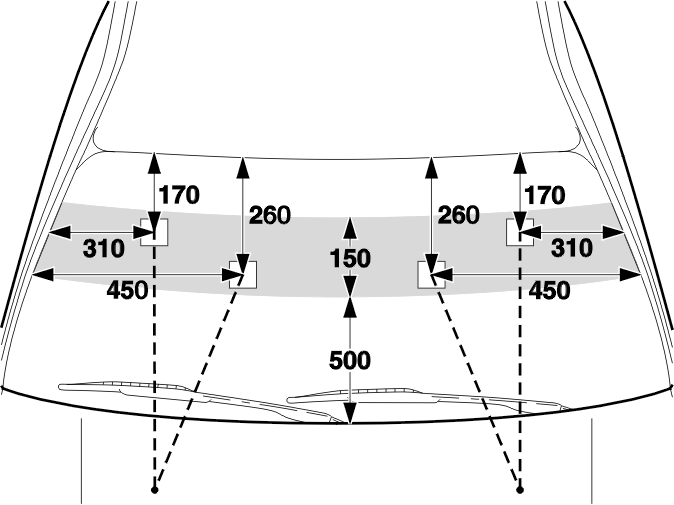

Check that the washers reach within the gray shaded area of the front windshield, and possibly within the square (white). (70 x 70 mm).
When adjusting. Adjust the point where the jets strike the front windshield, as shown.
Mark the points with a marker pen or a piece of tape as shown.
Adjust the washer nozzle with a small screwdriver (or a solid needle).
HINT: Do not damage the nozzle.
