Remove Washer Jet

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

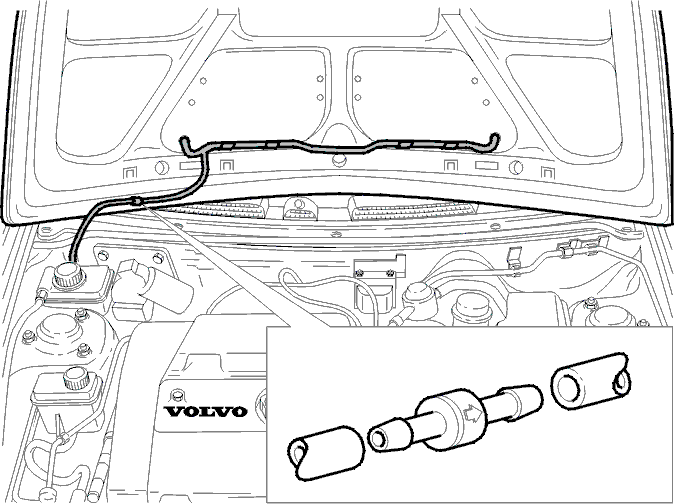

Fig 1: Checking Washer Jet

Courtesy of VOLVO CARS OF NORTH AMERICA.

If washer fluid leaks from jet the check valve must be checked before washer jet is replaced as shown.

Disconnect hoses to check valve. Blow clear check valve with compressed air (Note direction of arrow) and make sure it allows free flow from one side.

Reinstall in reverse order.

NOTE: Arrow must point in flow direction

Check if washer fluid leaks from nozzle. If washer fluid still leaks, check valve must be replaced.
