Climate Control Unit

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

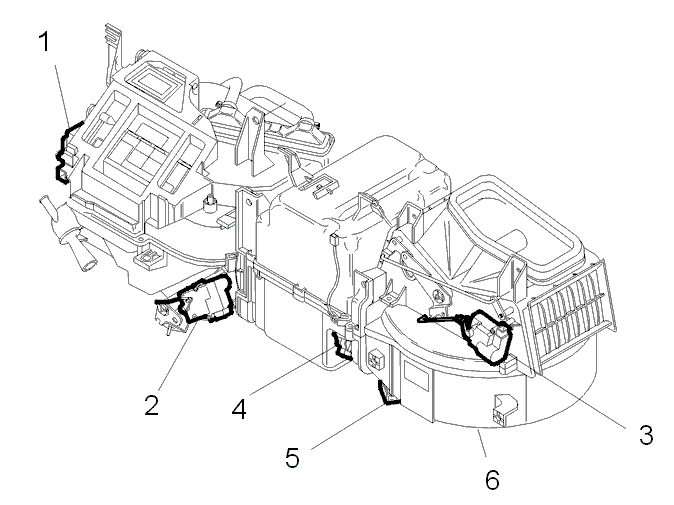

Fig 1: Climate Control Unit
GLL113089Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Air distribution damper motor
  2. Temperature damper motor
  3. Recirculation damper motor
  4. Blower fan power unit
  5. Blower fan relay (maximum relay)
  6. Blower fan.
