Passenger Compartment

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

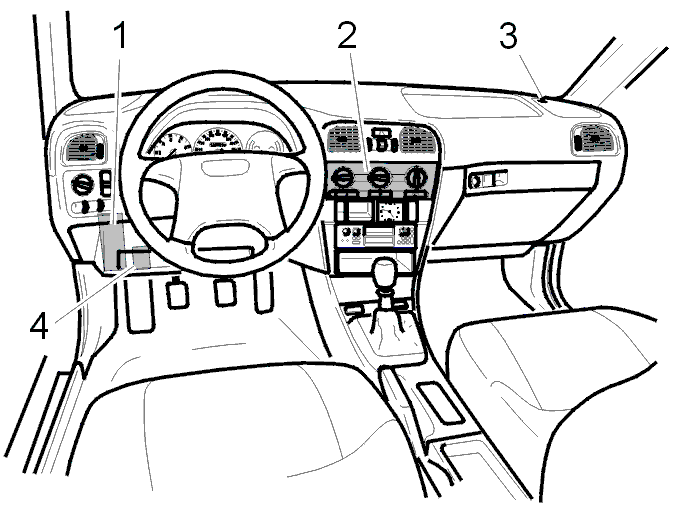

Fig 1: Identifying Integrated Relay/Fusebox, ECC Control Module, Sun Sensor And Relay Box
GLL117063Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Integrated relay/fusebox 11/B
  2. ECC control module/control panel/passenger compartment temperature sensor
  3. Sun sensor
  4. Relay box 15/14
