Important when fault-tracing in the central locking system

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Locking the locking module manually with the door in the open position

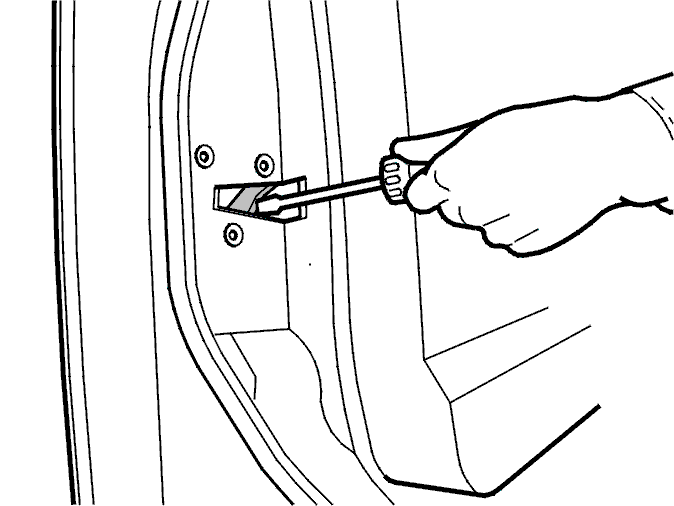

Fig 1: Pushing Locking Module Into Locked Position By Pushing Locking Disk In With Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Leave doors and trunk/tailgate open when fault-tracing. Push the locking module into the locked position by pushing the locking disk in with a screwdriver.

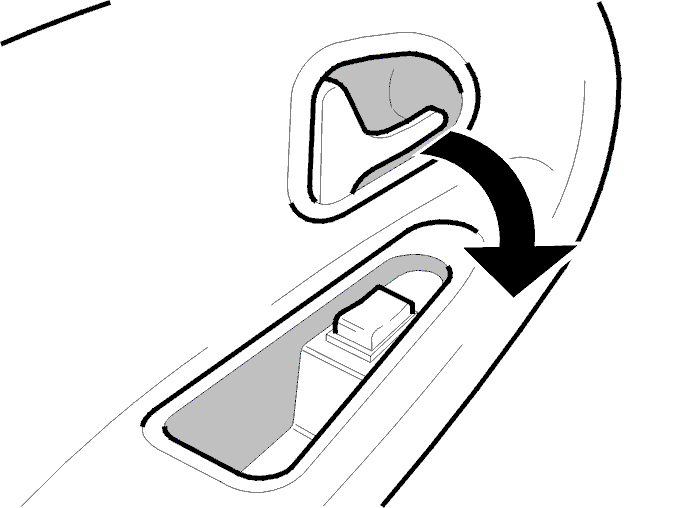

Fig 2: Returning Locking Disk To Open Position By Opening Door Using Inside/Outside Door Handle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Once fault-tracing is complete, return the locking disk to the open position by opening the door using the inside or outside door handle.

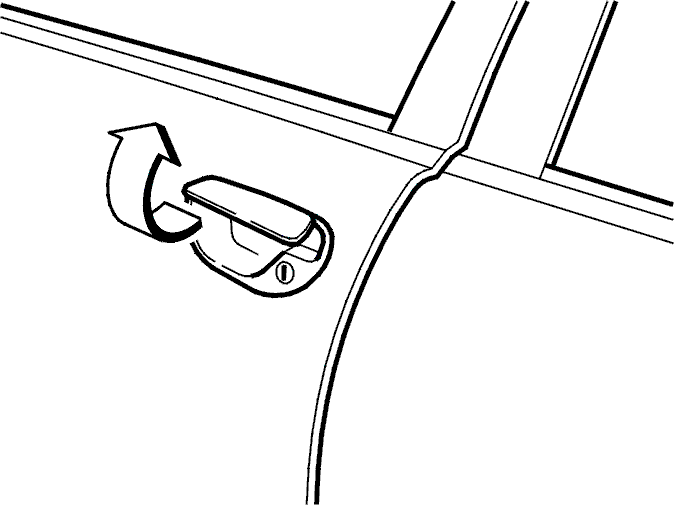

Fig 3: Returning Locking Disk To Open Position By Opening The Door Using Inside/Outside Door Handle

Courtesy of VOLVO CARS OF NORTH AMERICA.
