Location Of Components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

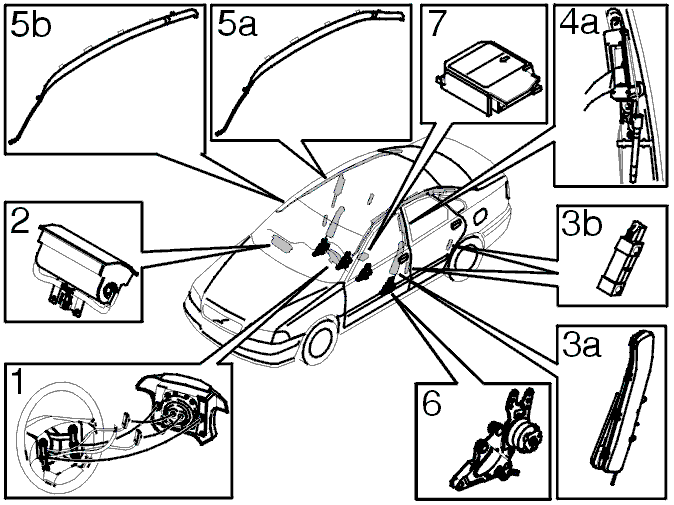

Fig 1: SRS Safety Equipment

Courtesy of VOLVO CARS OF NORTH AMERICA.

1. Steering wheel module, see Safety Equipment

2. Passenger airbag module, see Safety Equipment

3a - b. SIPS module (Side Impact Protection System) and Sensors in B- and C-posts, see Safety Equipment

4a. Seat belt with seat belt tensioner, Front seat, see Safety Equipment

5a - b. IC, Inflatable Curtain, see Safety Equipment

6. WHIPS (Whiplash Protection System), see Safety Equipment

7. SRS control module, see Safety Equipment

Other Other SRS components, see Other
