Removing the roof trim

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

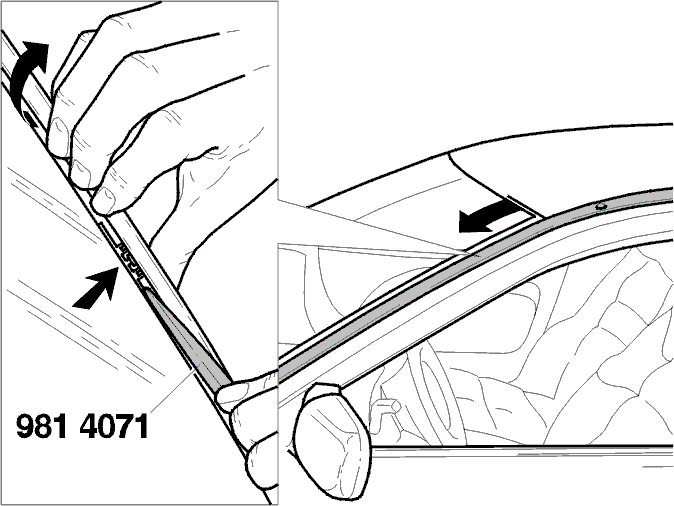

Fig 1: Pressing In Using Tool 981 4071 Between Window And Roof Trim By Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Start at the upper edge of the front windshield. Work downwards.

Press in using tool 9814071 between the window and the roof trim by the clips.

At the same time carefully pull up the roof trim.

Carry out the above procedure for the rear windshield.

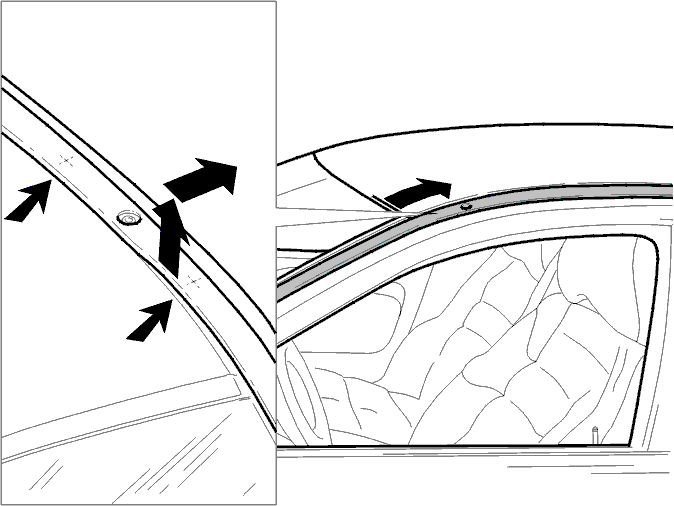

Fig 2: Removing Roof Trim

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the roof trim upwards and out from the inside by the clips.

NOTE: Do not twist the roof trim.

Work backwards until the entire molding is loose.

Lift the molding off.

Remove:

the roof trim holder from the inside of the roof trim
the windshield clips
the end stop
the other clips in the end stop direction.
