Roof Trim: Preparations

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

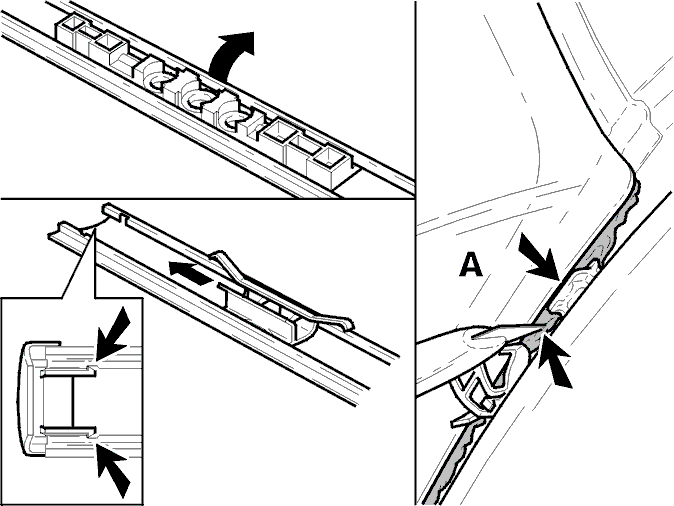

Fig 1: Checking Red Clip At Windshield
GLL116795Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut away a few millimeters of old PUR adhesive at the A-post on both sides of the clips.

Check for paintwork damage.

Touch up any paintwork damage.

Check the red clip (A) at the windshield and rear windshield.
