Installing the rear windshield: Preparations

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

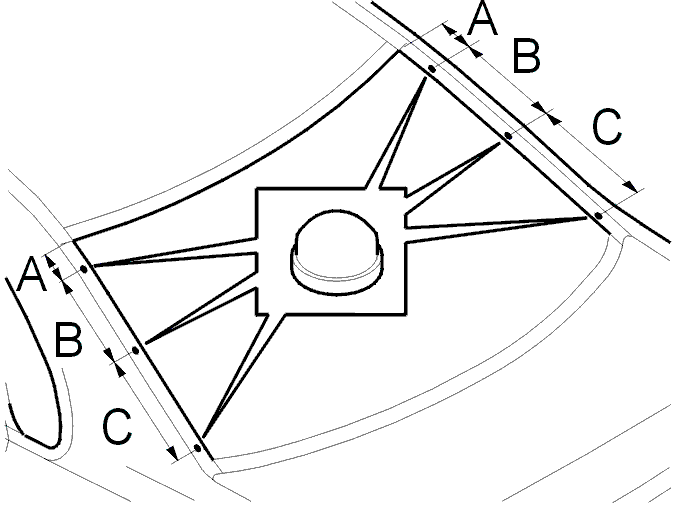

Fig 1: Suction Cups On Window

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the mounting clamps.

Install new spacers.

Dimension A = 50 mm.

Dimension B = 230 mm.

Dimension C = 230 mm.

Install suction pads 9986030

Place the window on a stand.

Install the trim strip at the top edge.

Install strips of tape vertically on the bodywork to secure the window position when installing.
