Installing the badge

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

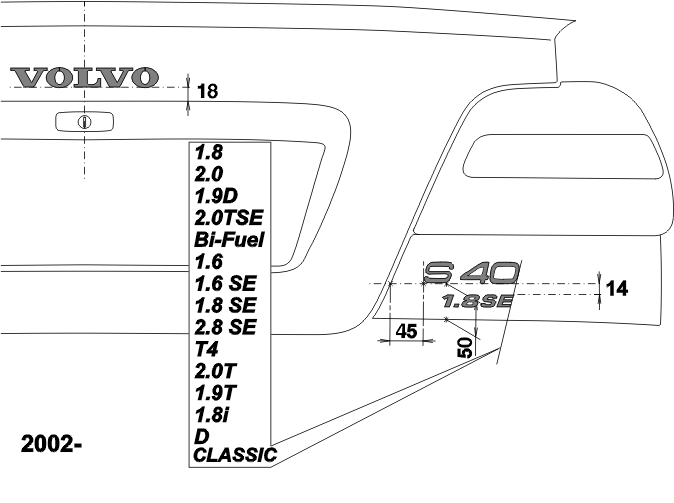

Fig 1: Badge Measurements

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the backing from the reverse
Position the badges as shown in the diagrams in the graphics. Press the badges into place.
Position the badges, based on the year and model year, as indicated in the diagrams in the graphics. Press the badges into place.
