Removing the plenum chamber

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

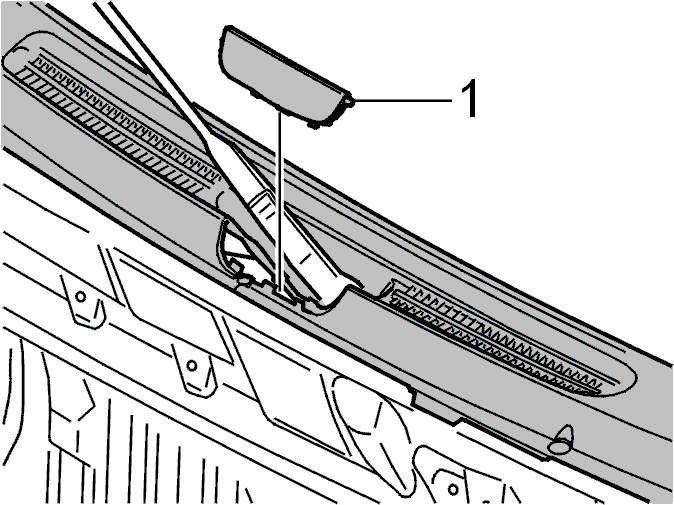

Fig 1: Wiper Arms Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the cover (1)
the wiper arms according to Removing windshield wiper arms .

Fig 2: Plenum Chamber And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the two covers (2)
the seven clips (3, 4, 5)
the plenum chamber.
