Installing the plenum chamber

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

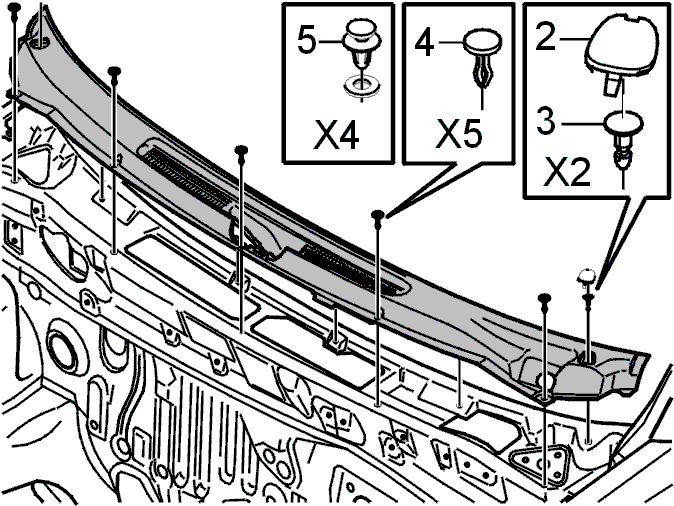

Fig 1: Plenum Chamber And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the plenum chamber
the seven clips (3, 4, 5)
the two covers (2)
the wiper arms according to Installing windshield wiper arms
cover (1).

NOTE: First guide the clips (5) under the plenum chamber when reinstalling. Then reinstall the other clips and cover.
