Replacing the roof trim

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

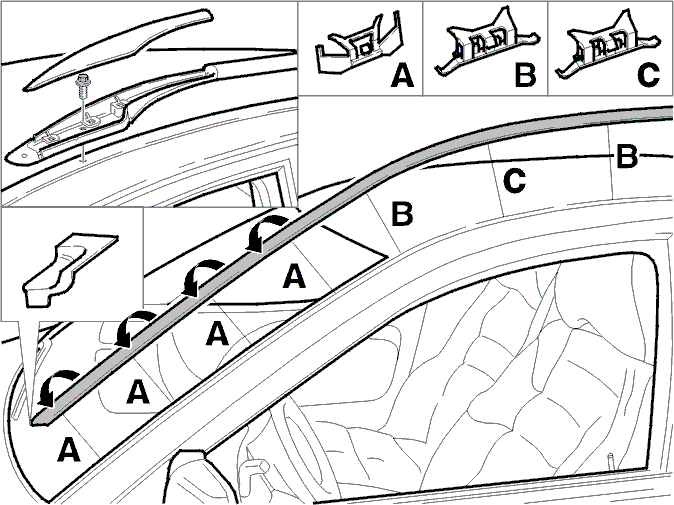

Fig 1: Replacing Roof Trim

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the plugs (4x).

CAUTION: Carefully twist the trim up. Start at the front.

Remove the retaining clips from the car
Install all the retaining clips on the roof trim and press them into place
Cut away a few millimeters of old PUR adhesive on both sides of the clips on the A-post.
Check that the paintwork is not damaged.

Touch up if necessary
Position the trim so that it is positioned correctly in relation to the holes for the roof rack
Press the trim in. Start at the front.
