Replacing the badge
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Heat the badge carefully using a hot air gun
- Carefully remove the badge
- Clean any dirt and grease from the surface using white spirit.
WARNING:
Avoid skin exposure to white spirit.
- Remove the backing from the reverse

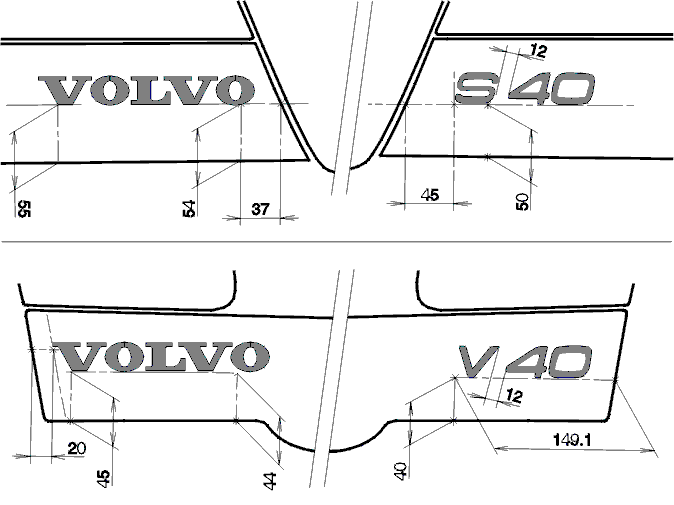

- Position the badge as shown in the diagram. Press the badge into place.
