Replacing sill molding
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

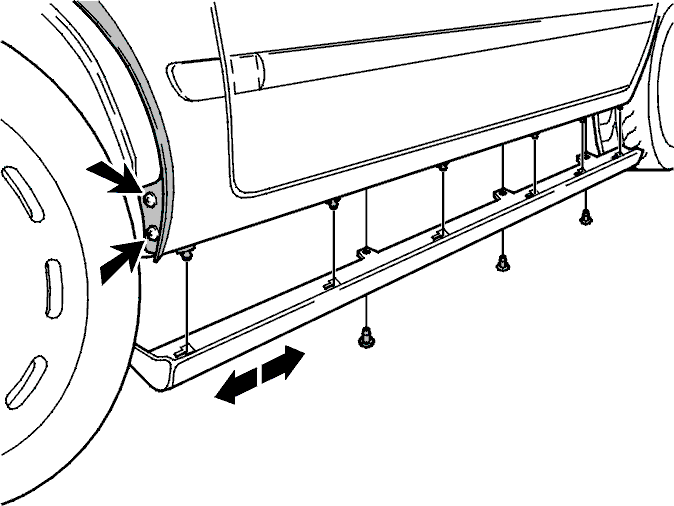

- Remove the front fender extensions (2 self tapping screws)
- Remove the three retaining clips under the sill trim
- Carefully pull off the sill molding from the front and rear bodywork.
NOTE:
The sill molding is secured using tape.
- Slide the door trim strip forwards and remove it
- Checking the mountings
- Apply double-sided adhesive tape P/N 1160053 at the front and rear of the door trim strip
- Position the door trim strip and slide it backwards
- Install the three retaining clips.
NOTE:
Install the front fender extensions on the front fender (use double sided tape).
