Draining Refrigerant

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

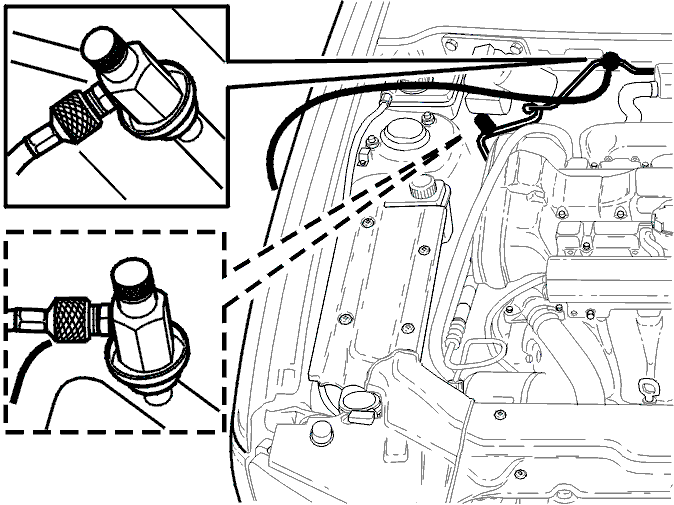

Fig 1: Locating Service Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

When draining refrigerant, the recycling unit can be attached to the service valve for both the high pressure side (HP) and the low pressure side (LP). This is the quickest method.

The engine must be switched off
Check the amount of oil (if any) that has run out when draining the refrigerant.

NOTE: The recycling unit must be equipped with an oil separator. The oil separator must be of a type that allows the amount of oil in the refrigerant to be measured.

Other information:

For vacuum pumping, see Vacuum Pumping
For visual and physical checks, see Visual And Physical Check
To fill with refrigerant, see Filling With Refrigerant
To fill with fluorescent tracing agent, see Filling With Fluorescent Tracing Agent
To leak trace with an electronic leak tracer, see Leak Tracing, Electronic Leak Tracer
To leak trace with fluorescent tracing agent and an UV torch, see Leak Tracing With Fluorescent Tracing Agent And An UV Lamp .
