Control Bobbin And Accelerator Cable, Check/Adjust
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check with warm engine.
Remove the throttle body cover.
The control bobbin should move easily without seizing.
The inner cable should be loose and not stretched at the idle position.
The play of the inner cable should be 0.5 - 2.0 mm. If necessary, the inner cable can be adjusted with the help of the other cable and a screw.

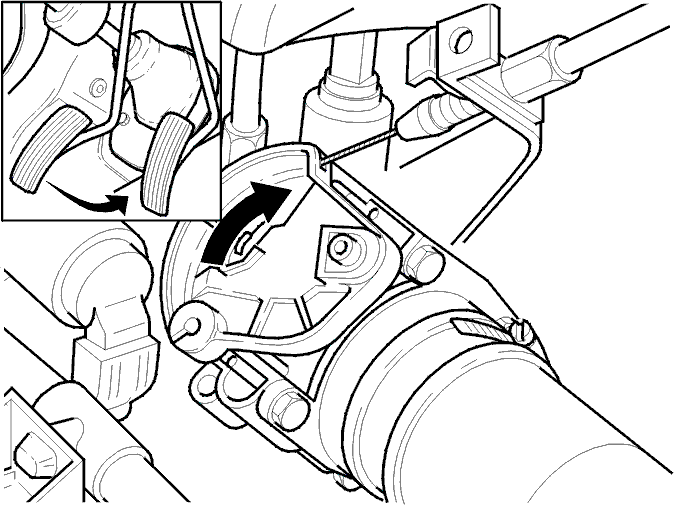

Apply full throttle and check that the accelerator control bobbin is in contact with the full throttle stop.
Install the throttle body cover.
