Connecting the pressure gauge
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

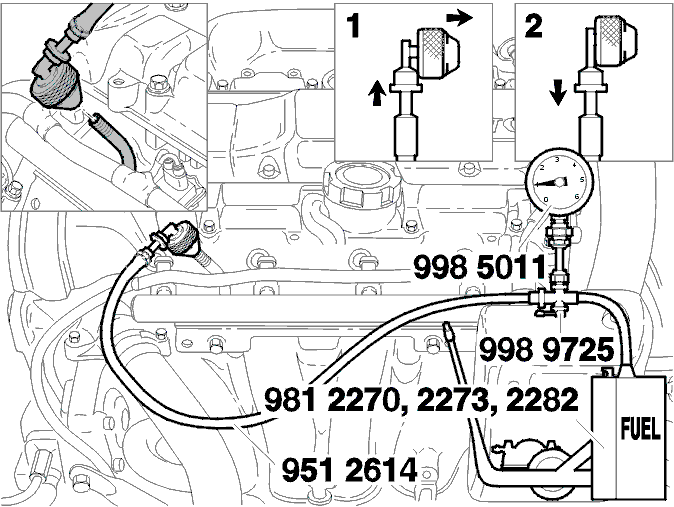

- Use pressure gauge 9995011 with nipple 9989725 and adapter 9512614 before use.
- Remove the cover over the fuel rail.
- Connect the adapter to the valve on the fuel rail. Set the adapter in its locked position. (graphic 1, valve closed)
- Turn the tap on the pressure gauge in the direction of the hose 9512614 .
- Connect the other pressure gauge terminal to the fuel draining unit 9812270 , 9812273 , 9812282 .
- Open the adapter (graphic 2, valve open).
