Removing/installing seat
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Removing:
- Fold the left and right seats forwards.

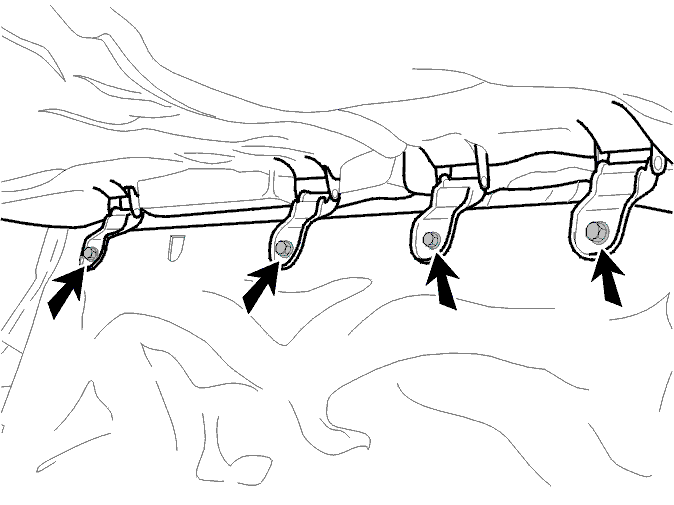

- Remove the bolts from the hinges.
Installing:
- Place the seats and finger tighten the bolts.
- Push hinge as far back as possible.
- Tighten the bolts to 23 Nm.
