Removing upholstery

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

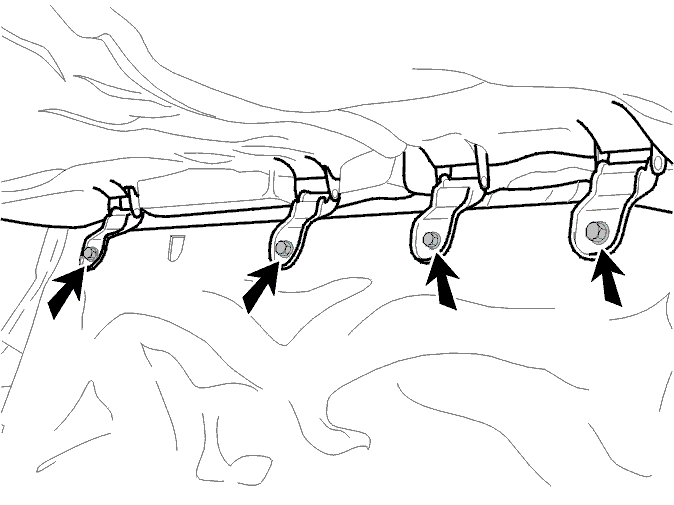

Fig 1: Removing Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unzip the upholstery L and R.
Pull the upholstery lining over the hinges.
Fold the upholstery back.
Pull the upholstery back at the front (remove the clamps).
If present: remove the child seat, see Removing seats .
Undo the upholstery underneath (remove the clamps), at the seat belt buckle and at the side.
Fold the upholstery back (upwards) and pull it away from the seat surface. Cut clamps and remove remains.
Remove the upholstery.

NOTE: The foam is part of the frame and cannot be replaced.

NOTE: In versions with child seat, clips must be undone underneath.

Install in reverse order.

Use new upholstery clamps and special tool 1158962

Position the upholstery correctly.
