Removing backrest

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

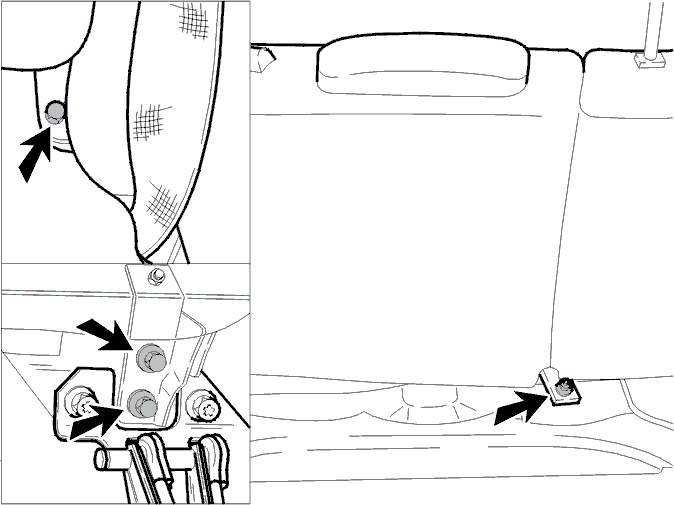

Fig 1: Backrest Supports

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Fold the left and right seats forward.
Remove bolts on left (1x) and right (2x) from the support.
Remove the nut under the lid in the boot.
Remove center seat belt mounting.
Fold right backrest forward if the left side is to be removed.
Unlock left backrest and remove with supports.
