Upholstery or plastic foam padding, replacing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

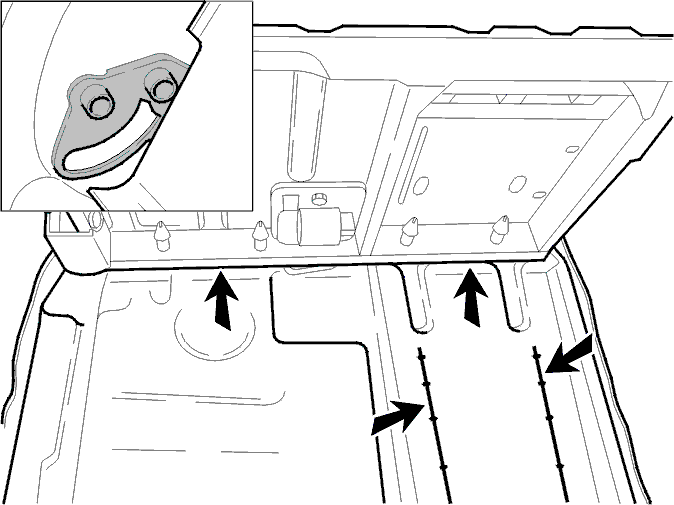

- Cut off the 10 x clamps for the upholstery
- Remove the mountings pins for the armrest.
When installing new upholstery: check that the number of holes is correct. Check that the upholstery is correctly secured.
NOTE:
When installing new locating pins, the lock must always be installed to the left.
