Seat belt rear, center, removing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upholstery
- Remove the white protective tab

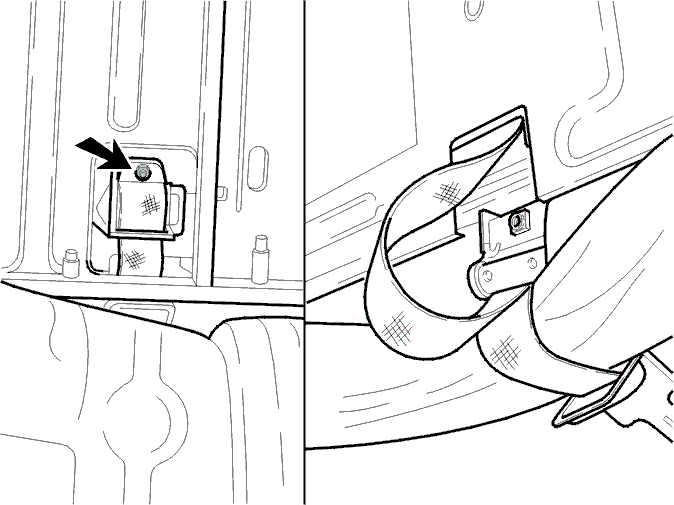

- Remove the screw and nut for the upper locating pin
- Remove the upper locating pin
- Remove the seat belt. Twist the seat belt 180° and thread it through the upper guide
- Remove the entire seat belt.
- Install in reverse order.
Use a new nut. Tighten to: 25 Nm.
Tighten the upper locating pin. Tighten to: 18 Nm.
