Removing the upholstery

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

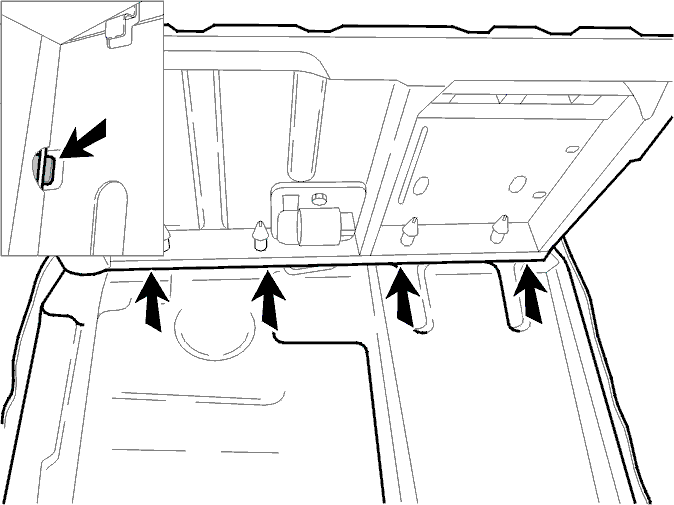

Fig 1: Upholstery Locating Pins

Courtesy of VOLVO CARS OF NORTH AMERICA.

If removing the armrest:

Bend the catches
Pull out the lugs at the same time as the upholstery
Pull the upholstery over the locating pins.

In all cases:

Open the zipper
Cut through part of the guide for the head restraint. Press the pin in
Remove the 4 x locating pins
Remove the upholstery and the padding together.

Install in reverse order.

NOTE: Always install new locating pins when replacing the upholstery.
