Installing the sun visor
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

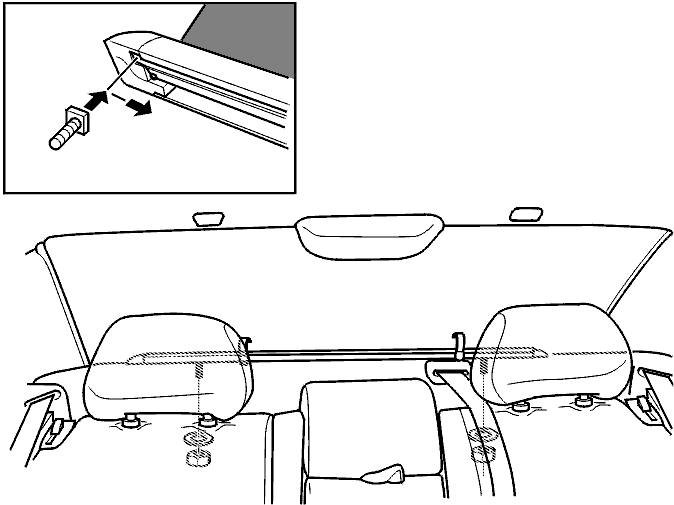

Install:
- the screws on the sun blind
- the sun blind on the parcel shelf
- the washers and nuts. Finger tighten.
Hook the sun blind into the holder.
Adjust the sun blind to the correct position.
Tighten the screw. Tighten to 5 Nm
.
