Removing the whiplash element

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make a note of the routing of the SRS ignition cable and the location of the cable clips. Remove the cable clips. Move the SRS ignition cable to one side.

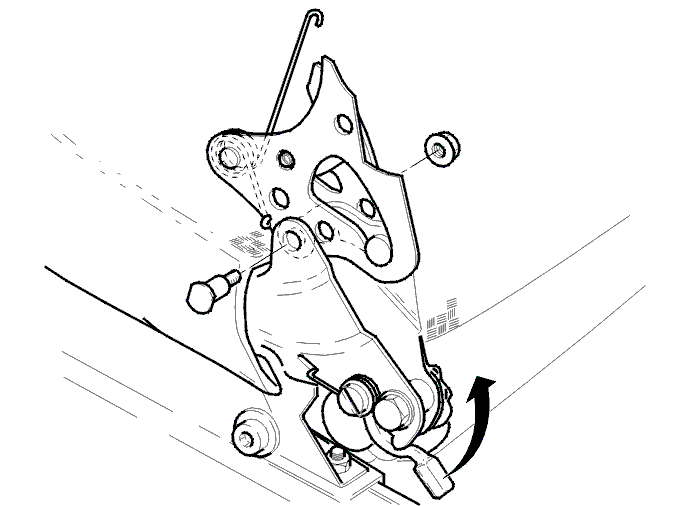

Fig 1: Removing Whiplash Element Spring And Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the spring.

Remove:

the indicator pin or its remains (only applies to cars up to chassis number -642122 )
one nut on each side
one spindle from each side.

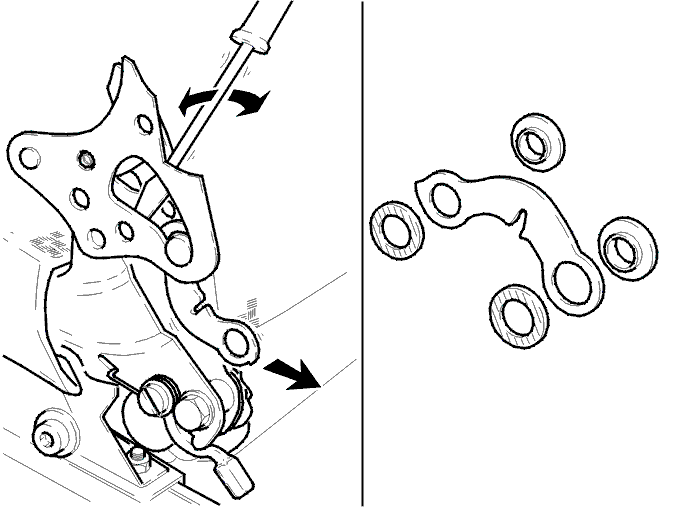

Fig 2: Removing Whiplash Element

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the bracket apart as shown.

Remove the segment.

NOTE: Mark the position of the bracket.
