Installing the whiplash element

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

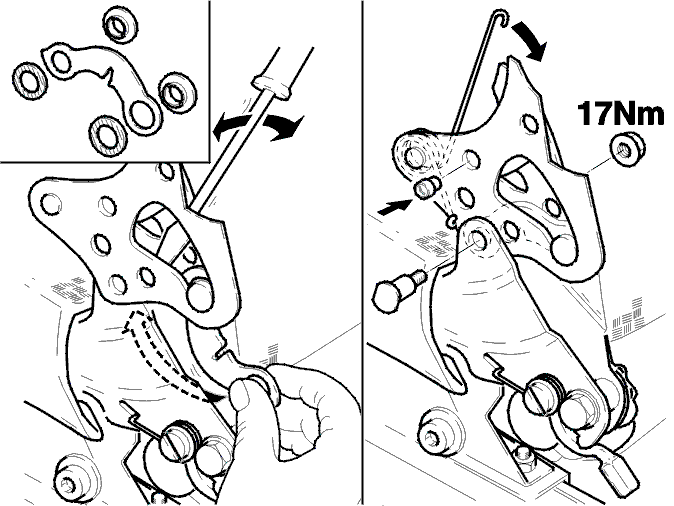

Fig 1: Installing Whiplash Element With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the bracket apart.

Install the 4 washers with the segment in the correct position (with the ribbed side towards the bracket).

Assemble the bracket and align the screw with the nut. Tighten the nut by hand.

Tighten the nut. Tighten to 17 Nm .

Install a new indicator pin in the bracket (only applies to cars up to chassis number -642122 ).

Hook the spring into place.

Secure the SRS ignition cable.

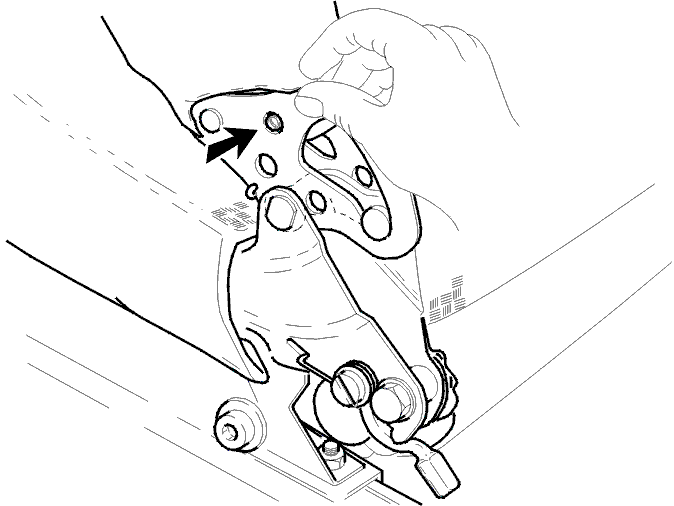

Fig 2: Checking Indicator Pin Is Intact And Correctly Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the indicator pin is intact and correctly installed (only applies to cars up to chassis number -642122 ).
