Removing the side panel

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

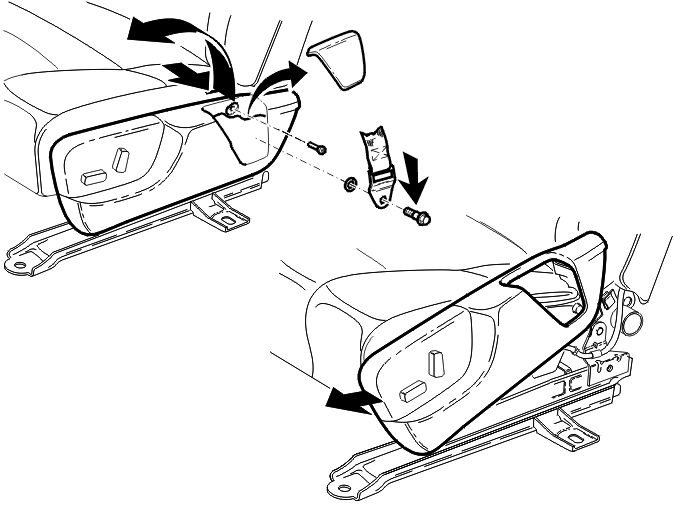

Fig 1: Removing Side Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the cover on the side by pressing in the locking tab at the upper edge. Pull the cover upwards and out
the mounting for the seat belt
the mounting screw
the panel by lifting it at the rear edge and then pushing it forwards.

Disconnect the panel connectors under the seat and disconnect the cable harness.
