Installing the side panel
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

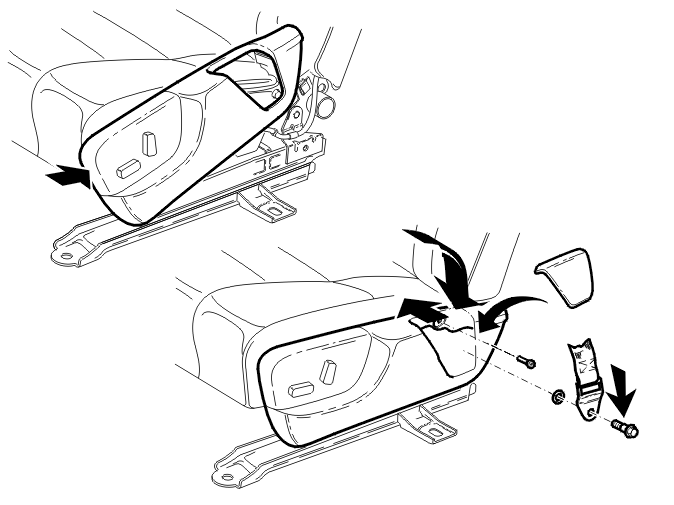

Reconnect the panel connectors under the seat.
Secure the cable harness in the base of the seat.
Hook on the panel at the front edge and twist it into place.
Install:
- the mounting screw
- the seat belt. Tighten to 48 Nm
- the cover.
