Seat with height adjustment

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

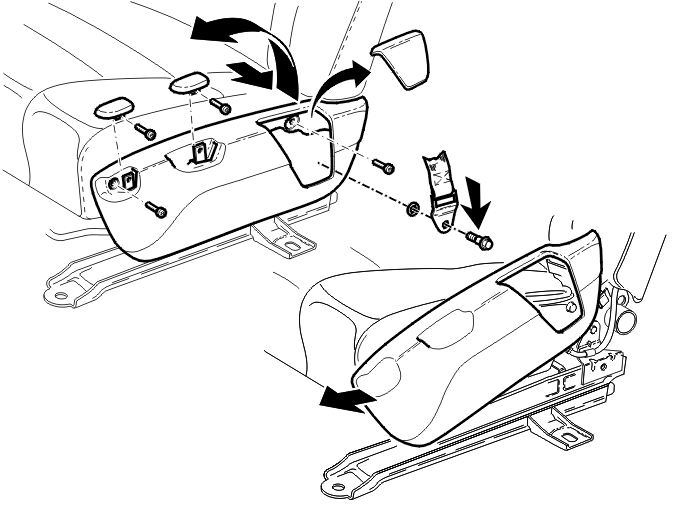

Fig 1: Removing Side Panel -- Seat With Height Adjustment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the height adjustment handles by lifting the handles and removing the screws. Pull the handles up
the mounting screw at the front edge
the cover on the side by pressing in the locking tab at the upper edge. Pull the cover upwards and out
the mounting for the seat belt
the mounting screw
the panel by lifting the rear edge and then pushing it forwards.
