Removing the seat rail
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove the front seat. See Front seat, replacing .
For inner rails: Remove the seat belt buckle.

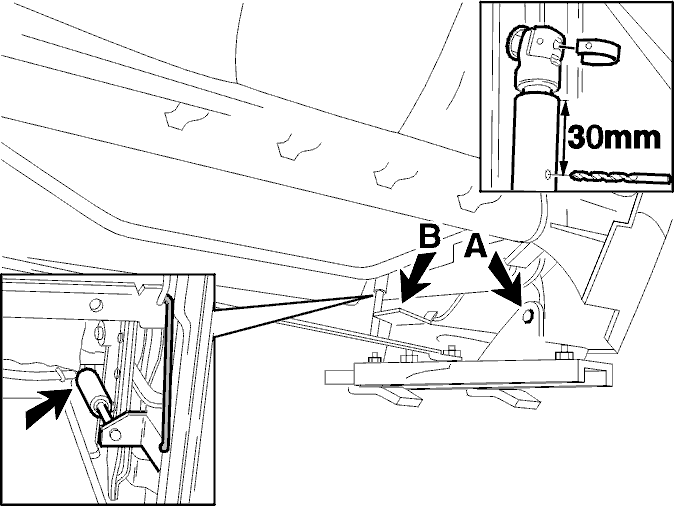

Remove:
- the front screw (A)
- the rear screw (B)
- the rail (and gas strut).
NOTE:
When replacing the gas strut, the gas must be released. Drill a 4 mm hole as shown.
