Installing the seat rail

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

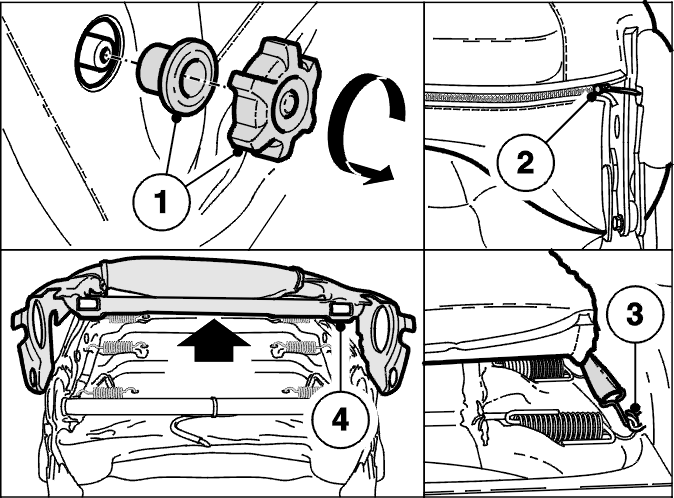

Fig 1: Installing Seat Rail

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer the components as required.

Put the seat in its highest position.

Secure the gas strut and position it in the frame.

Install:

the rail. Position the gas strut in the mounting
the rear screw (B). Finger tighten.

Slide the rail forwards. Install the front screw (A).

Tighten the 2 screws. Tighten to 15 Nm .

For inner rails: Install the seat belt buckle. Tighten to 48 Nm .

Install the seat. See Front seat, replacing
