Removing the control module

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Raise the seat to its highest position.

Fig 1: Identifying Ignition In Off Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Fig 2: Identifying Ignition Key Off

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the key.

NOTE: The key must be removed to ensure that the ignition is not switched on by mistake.

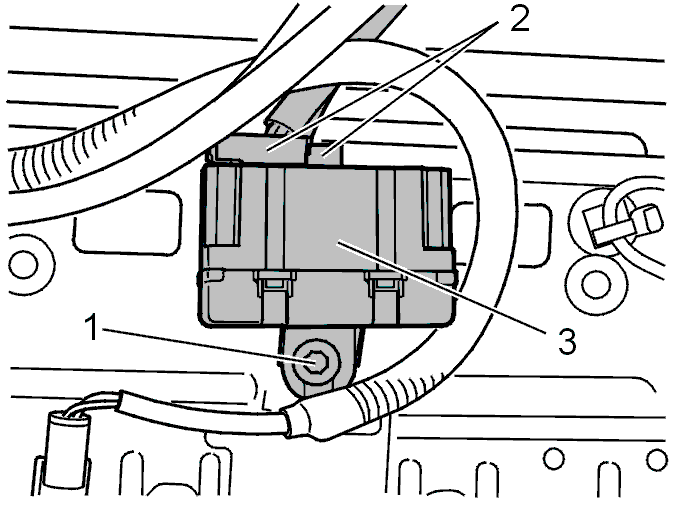

Fig 3: Removing Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Wait 1 minute before starting work.

Remove:

the panels over the front mountings on the seat: Pull straight up
the panels above the rear mountings for the seat: Pull up and backward
the 4 screws for the seat.

Tip the seat back.

Slacken off the screw for the control module.

Remove:

the connector (2)
the control module (3).
