Installing the base

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

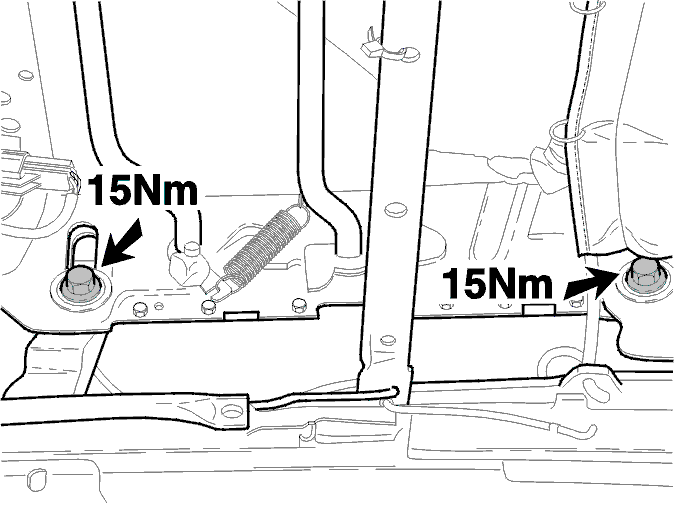

Fig 1: Installing Power Seat Base With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer components if necessary.

Set the seat to its highest position.

Install:

the base
the rear screws. Tighten by hand
the 4 front screws. Tighten to 15 Nm
the cable harnesses and connectors
the front seat. See Front seat, replacing .
