Removing the adjustable lumbar support

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

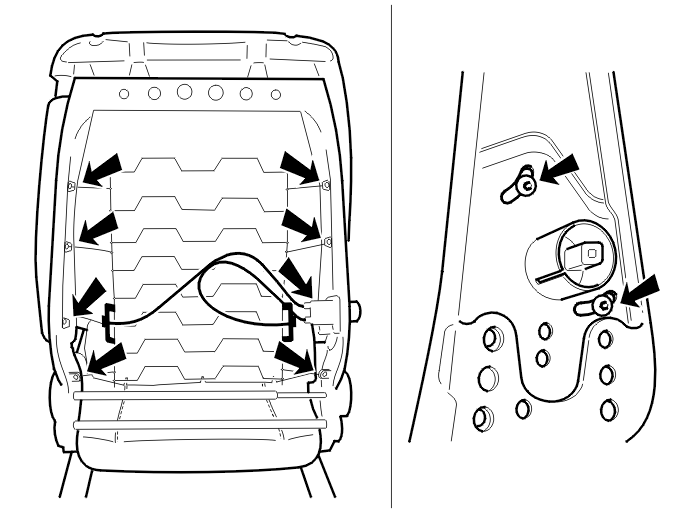

Fig 1: Identifying Backrest Mounting Screws And Hooks

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the 2 mounting screws on the side of the backrest
the 6 hooks on both sides.

Detach the 2 mechanical cables on both sides.

NOTE: Note the direction from which the mechanical cables are installed.

Remove the adjustable lumbar support.
