Installing the backrest upholstery
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Use special tool 1158962 to secure the clamps.
NOTE:
Only use Volvo Genuine parts or Volvo approved upholstery when replacing the backrest upholstery.
Turn the upholstery inside out.
Position the upholstery at the top.

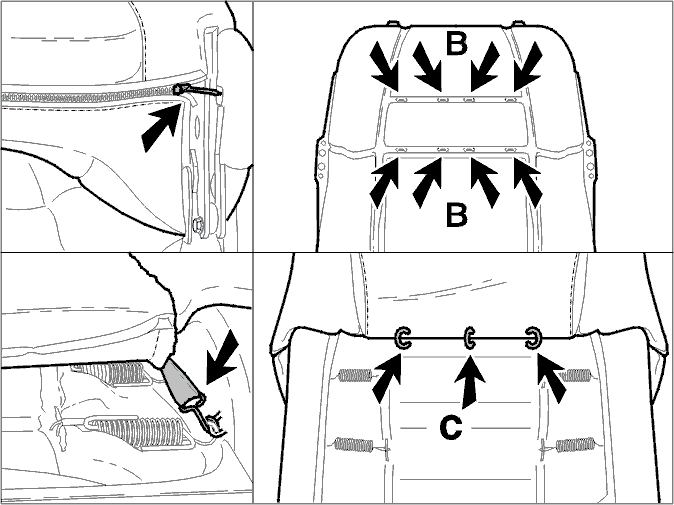

Secure the upholstery in the steel wires in the padding on the reverse. Use four clamps.
Pull the upholstery over the frame. Secure the upholstery against the padding on the reverse. Use three clamps (B).
Pull the upholstery down at the front. Secure the upholstery in the padding. Use four clamps.
Hook into place:
- the 2 hooks on the inside reverse
- the steel wires in the bottom edge of the plastic frame.
Pull the upholstery down further so that it is in position.
Lift up the lugs. Slide the backrest forward.
Install the upholstery over the plastic frame underneath.
Close the upholstery fully at the bottom.
