Removing the adjustable lumbar support

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

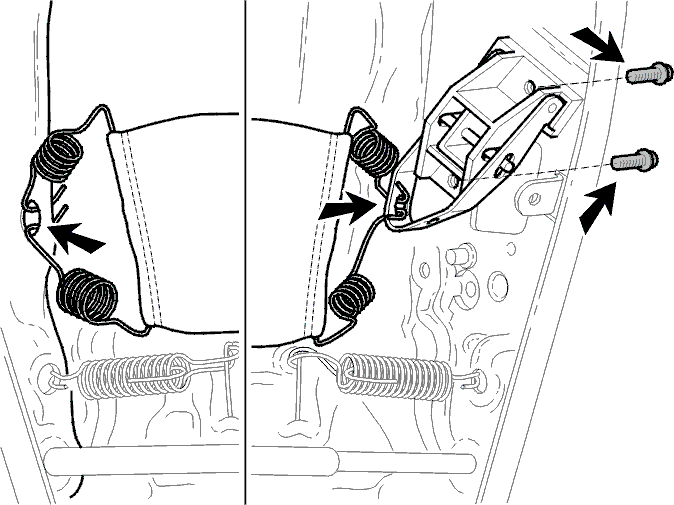

Fig 1: Removing Adjustable Lumbar Support
GLL116888Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: The upholstery does not need to be completely removed.

Note the positions of the springs and the lumbar support.

Remove the 2 screws. Remove the mechanism.

Remove the lumbar strap.
