Measuring Runout In the Rear Wheel Pulse Wheel
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

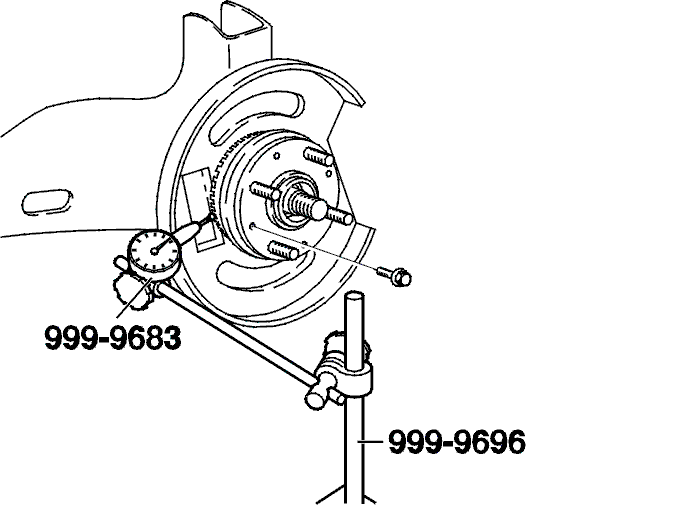

Locate holder 9999696 and dial gauge 9999683
Locate measuring probe and measure run out over the whole ring.
If run out is exceeds 0.13 mm, replace the pulse wheel. See Removing/Fitting The Rear Pulse Wheel .
