Reinstalling Removed Components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

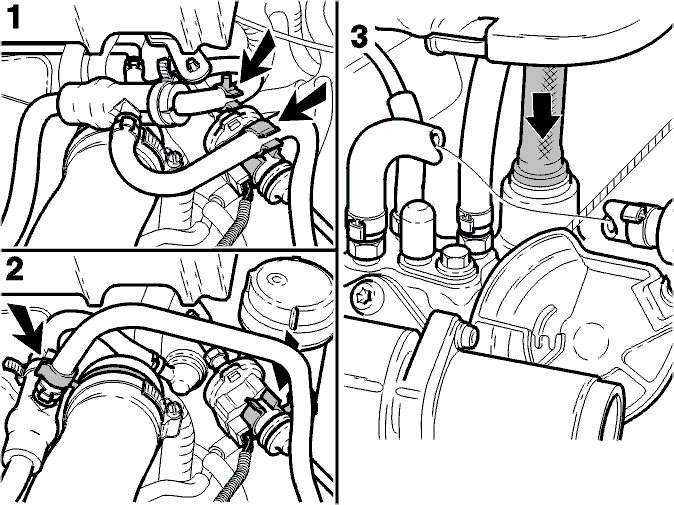

Fig 1: Identifying Intake Manifold Hose, Vacuum Hose And Engine Guard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reattach the hose to the intake manifold, making sure it is properly secured by pulling the vacuum hose.
Reinstall the vacuum hose in its retaining clamps.
Reinstall the engine guard.
