Checking the brakes

• A sticking brake can block one or both wheels when the car is being driven. This will mean that the wheel sensor signal is not transmitted.

  Check that the brake calipers are not sticking and blocking the wheels.

  Check that the parking brake lever, cables or brake calipers are not sticking.

  Check that the parking brake shoes and cables are correctly adjusted.

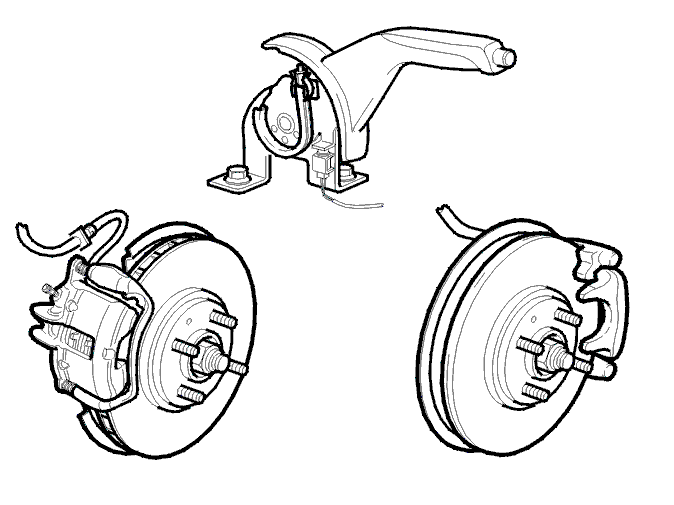

  Fig 1: Identifying Parking Brake Cable

  Courtesy of VOLKSWAGEN UNITED STATES, INC.

Are all brakes OK?

• YES

  Refer to Checking the brakes

• NO

  Refer to Remedy the component(s)

• Defective brakes resulting in minimal braking effect in one or more wheels. This affects the control module ABS control during braking.

  Check the brakes for the following symptoms:

• poor braking effect
• the brakes pull to one side.

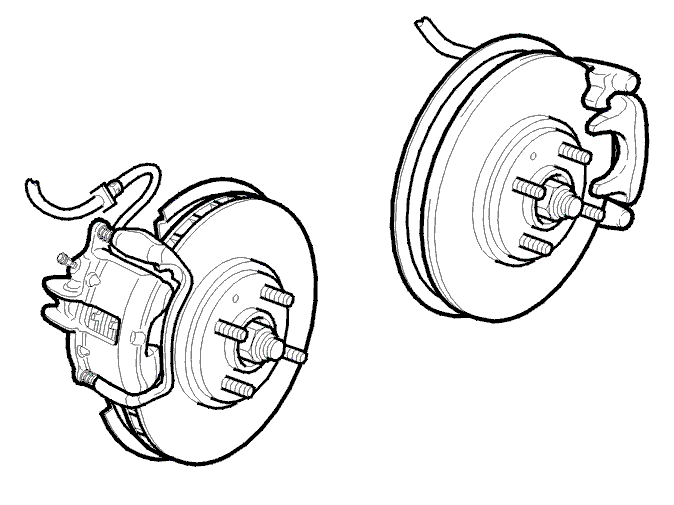

  Fig 2: Identifying Brake Pads In Rear Brake Caliper

  Courtesy of VOLKSWAGEN UNITED STATES, INC.

Are all brakes OK?

• YES

  Refer to Checking wheel sensors

• NO

  Refer to Verification
