Removing the throttle cable
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Automatic transmissions:
The kickdown switch is integrated in the throttle cable from and including model year 98 onwards.

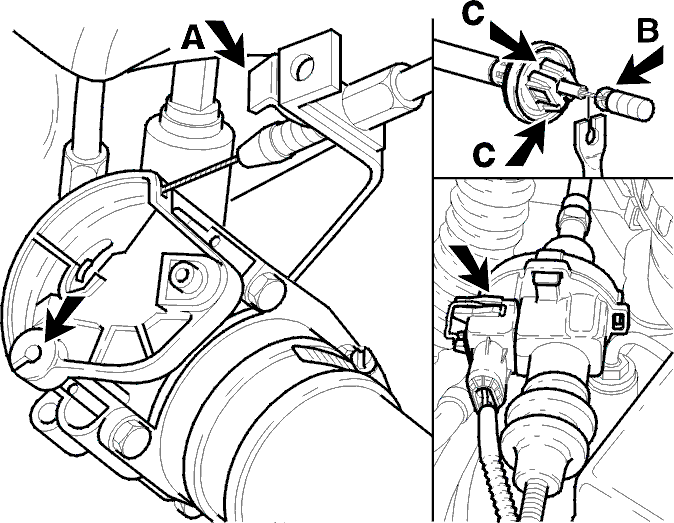

Remove from the engine compartment:
- the engine cover above the throttle body (TB)
- the cable with the throttle in the wide open position
- the circlip (A). Remove the cable sleeve from the cable mounting
- Automatic transmission from model year 98:
the connector from the kickdown switch.
Remove from the passenger compartment:
- the lower dashboard.NOTE: Remove the vacuum unit from cars with cruise control.
- press in the cable (B). Remove the throttle cable from the pedal
- the throttle cable from the firewall by press in the clips (C), first on one side and then on the other
- remove the cable.
