Installing the throttle cable
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Engine compartment:
- check the rubber on the cable
- insert the throttle cable through the cowl panel. Press it until it clicks.
The passenger compartment:
- connect the cable to the pedal. Ensure that the lock engagesNOTE: Cars with cruise control: Install the vacuum unit.
- install the lower dashboard.

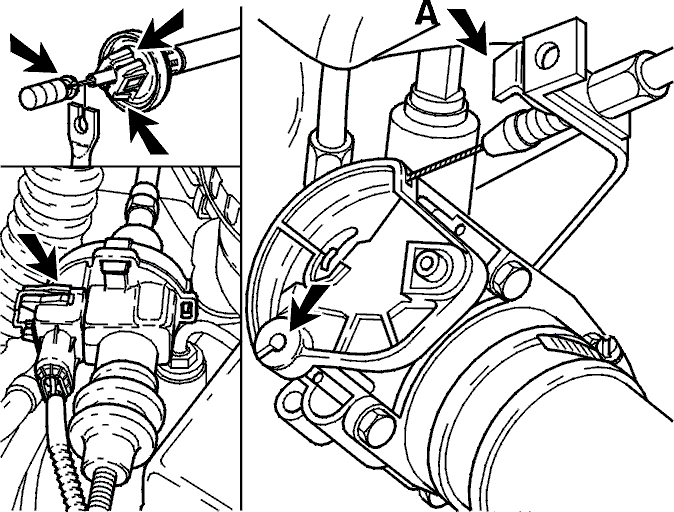

Engine compartment:
- Automatic transmission: install the connector for the kickdown switch
- install the cable sleeve on the cable mounting. Snap the clamp (B) into place
- connect the cable to the throttle body (TB).
