Part and Serial Number

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

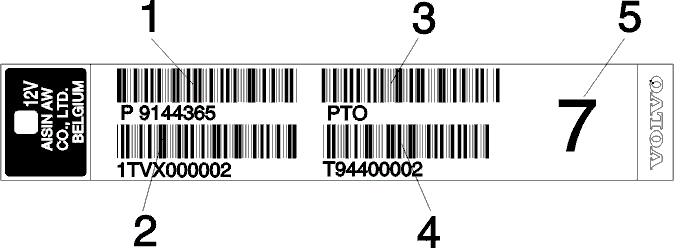

Fig 1: Identifying Transmission Control Module (TCM) P/N And Serial Numbers

Courtesy of VOLVO CARS OF NORTH AMERICA.

The transmission control module (TCM) P/N and serial numbers are stamped on a plate on the unit.

Volvo P/N
Identification code
Version
Serial number
Number according to car specification, type code
