Steering Shaft Covers, Removing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

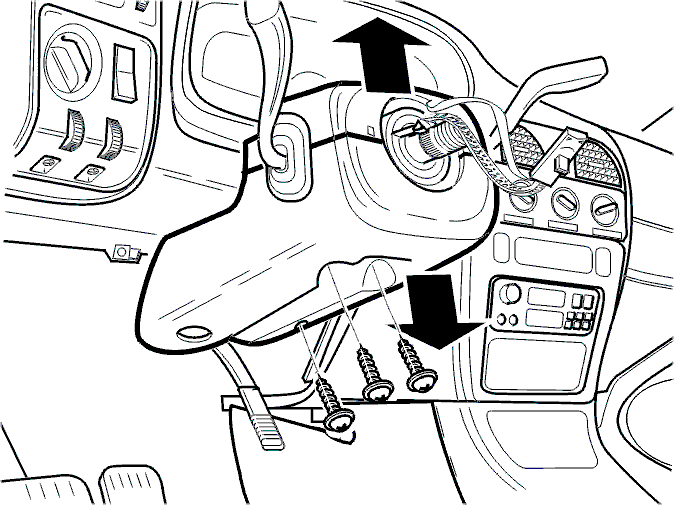

Fig 1: Steering Shaft Covers, Removing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 3 screws.
Remove the lower steering shaft cover.
Move the steering shaft to the lowest position.
Remove the upper steering shaft cover.
