Replacing the Windshield Wiper Shaft And/Or the Link Rod

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

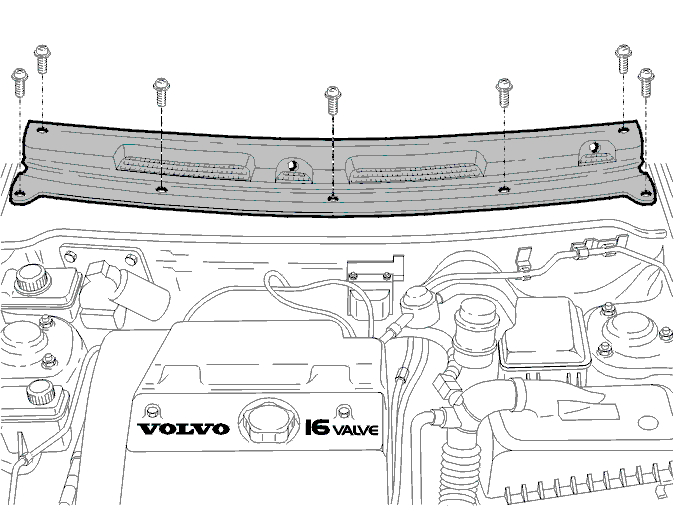

Fig 1: Removing Windshield Wiper Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the wiper arms, see Removing Windshield Wiper Arms .
Remove the cover, 7x screws.
Remove the panel.

NOTE: Inside the panel there are 4 clips.

Fig 2: Windscreen Wiper Shafts & Mounting Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the control mechanism (press off the drive mechanism ball with a large screwdriver).
Remove the mounting nuts (x6) from the windscreen wiper shafts.
Remove the assembly. Replace the control arms and/or shafts.
Grease the ball joints (grease P/N 1161037-5).
Install the assembly. Tighten the nut to 10 Nm.

HINT: Ensure that the turn points under the shafts are correctly located.

Install the panel (7x mounting screws).
Install the wiper arm, see Installing windshield wiper arms .
Check the function.
