Replacing the fog lamp control module
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the combined instrument panel, see Instrument .

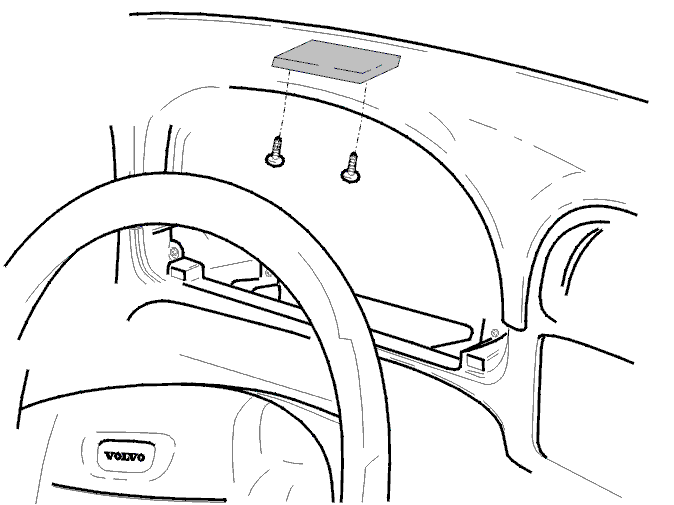

- Remove the two upper screws from the instrument.
- Remove the control module.
NOTE:
The relay is only located here if the car is equipped with a fog tail lamp. The relay is secured with a clamp.
