Checking system relay

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Disconnecting Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off
Remove system relay 2/14 from the integrated relay / fusebox in the engine compartment.
Connect an ohmmeter between system relay terminals 3 and 5.

Fig 3: Identifying System Relay Control Connector Terminals
Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Ohmmeter
Courtesy of VOLVO CARS OF NORTH AMERICA.

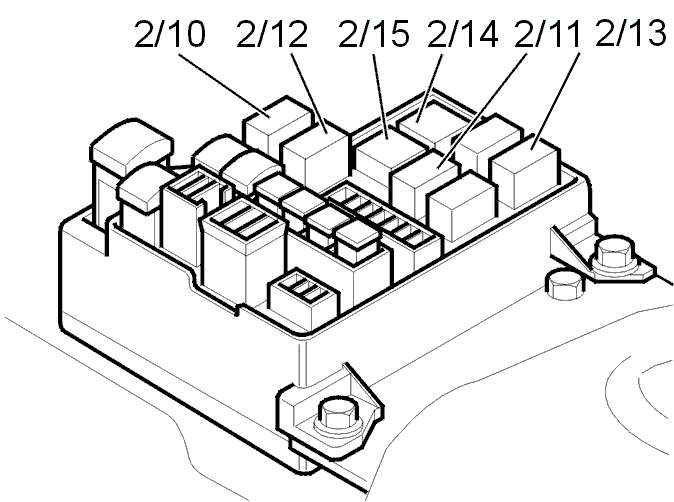

Fig 5: Identifying Integrated Relay/Fusebox In Engine Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.

The ohmmeter should read infinite resistance.

OK
Refer to Checking cables
NOT OK
Refer to Defective system relay
