Checking the fuse

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Check that fuse 9 in the integrated relay / fusebox in the engine compartment is intact.

Replace if necessary.

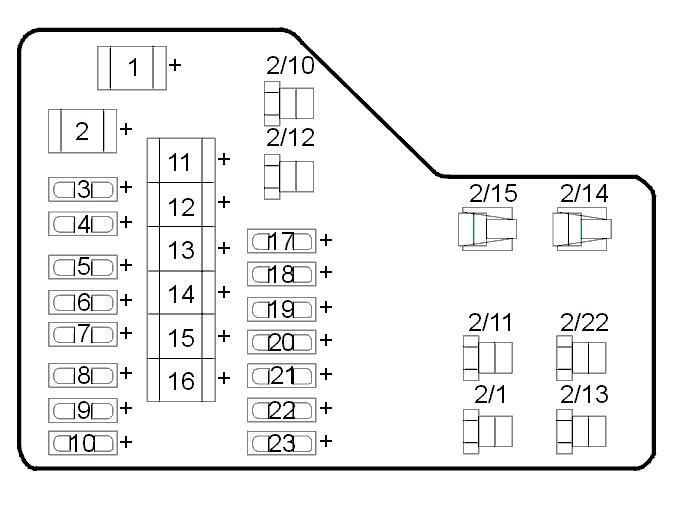

Fig 2: Identifying Integrated Relay/Fusebox
Courtesy of VOLVO CARS OF NORTH AMERICA.

Was a fault detected?

YES
Refer to Verification
NO
Refer to Checking the power supply
