Position of the bulbs in the tail lamp unit

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

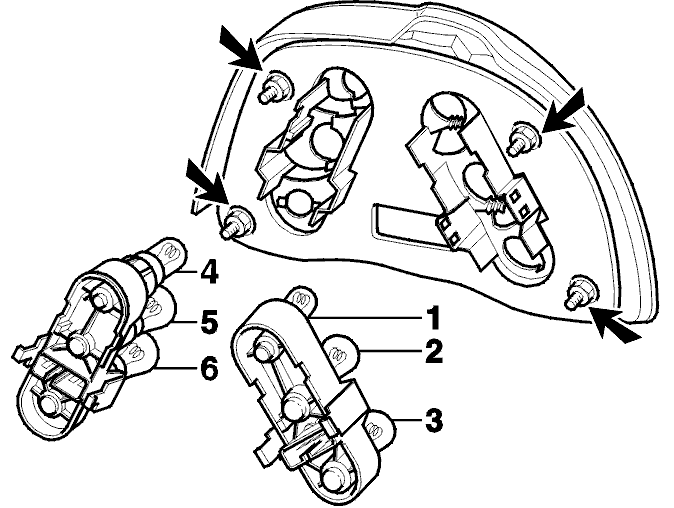

Fig 1: Removing/Installing Bulbs In Tail Lamp Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

The diagram displays the left-hand tail lamp unit. The same applies, mirror imaged, for the right-hand tail lamp unit.

For the type of bulb, see Bulbs .

1 = Tail lamp

2 = Turn signal lamps

3 = stop lamp

4 = Parking lamps

5 = Back-up lamp

6 = Fog tail lamp; (on the left in left-hand drive cars and on the right in right-hand drive cars.)
