Reading Lamp

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

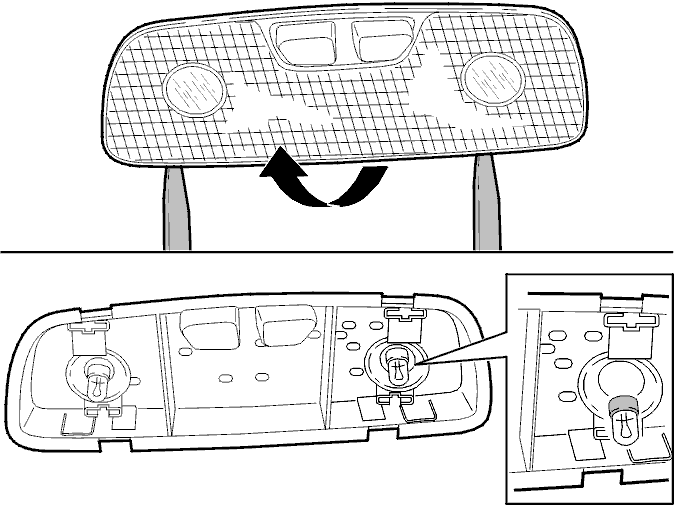

Fig 1: Reading Lamp Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removal

Remove:

the lens by inserting a weatherstrip tool or similar under the edge and twisting
the lens reflector by carefully inserting a weatherstrip tool at the catches and pulling off the reflector
the bulb.

Installation

Reinstall in reverse order.
